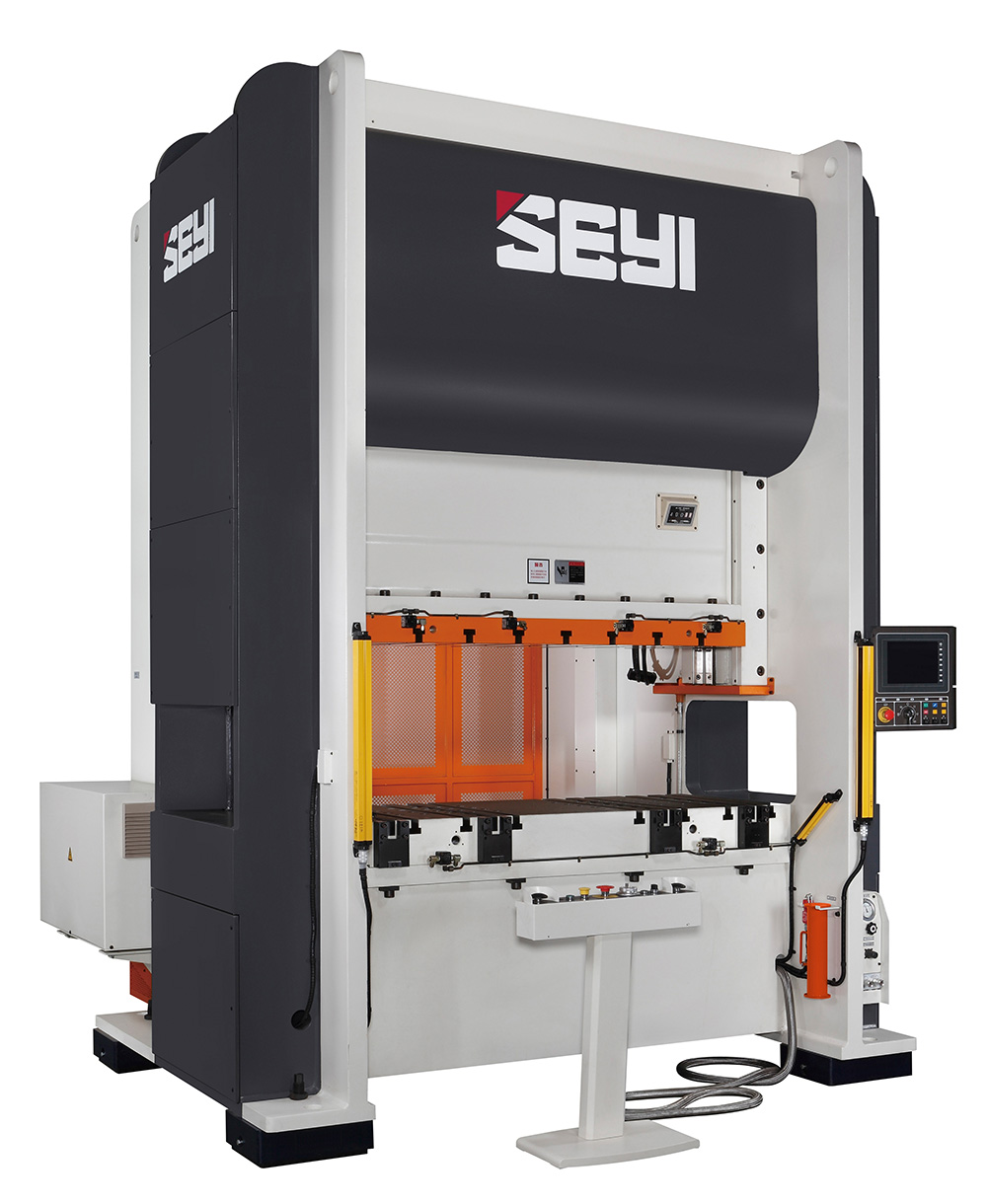

SD2 SERIES includes 160-500 Ton Presses
- Main motor, flywheel, clutch and brake are replaced with a High Torque-Low RPM Servo motor.
- Direct Drive eliminates down-gearing, loss of tonnage (especially high in the stroke), belts + other parts typically associated with knuckle or link-type servo presses.
- Unique Servo Pressure Stabilizer system eliminates power surges and conserves energy through a series of capacitors that equalize power consumption + store unused energy.
- Advanced high strength ribbed frame structure enables the hold of tight tolerances under longer dwells without stretching/elongating the frame
- Eight point gib slide guiding for improved accuracy and precision
- Electronic Overload Protection allows for immediate reaction – with automatic, programmable ram back-up
- 10.4″ High Resolution Color Display
- 7 Programmed Profiles + Freeform Motion
- 200 Job memory storage
- 8 Die protection sensor inputs
- 16 Programmable timing switches
