FEATURES

  • Suitable for high-volume cutting of aluminum profiles for window manufacturing and industrial applications
  • Material Infeed (incremental) protects the surface of the workpiece by means of a single-stage lifting system
  • 1, 2 or 3 storkes are possible by means of a selection switch
  • Accurate material infeed by 2 horizontal clamping cylinders
  • Saw cuts at angles up to 45º due to the tilting possibility of the saw head (optional)
  • Large cutting capacity for wide profile sections
  • Equipped with saw blade
  • Pivoting range 90º – 45º infinitely adjustable (optional)
  • Compressed air supply – 7 bar
  • Air consumption per working cycle 50/ without mist spray, 64 /with mist spray

Other Models available:  SA 142/36

Key features and specs

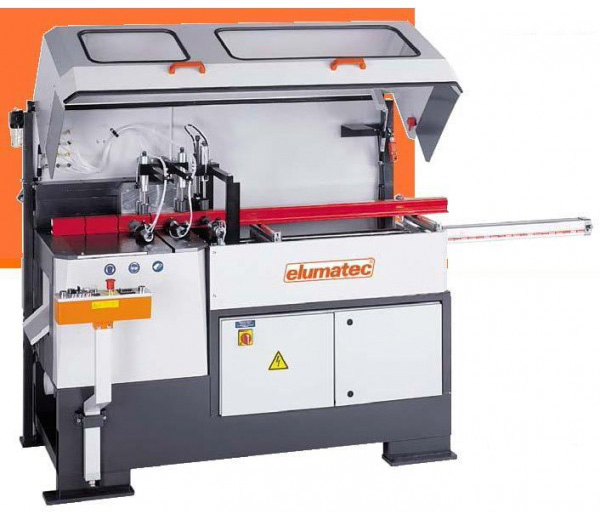

  • MODEL: SA 142/35
  • SAW BLADE DIAMETER: 500 mm
  • SPINDLE SPEED: 2800 RPM
  • POWER SUPPLY: 230/400/3/50
  • POWER OUTPUT: 4 kW
  • DIMENSIONS (LxWxH): 112" x 55" x 62"
  • WEIGHT: 1,698 LBS
