Model

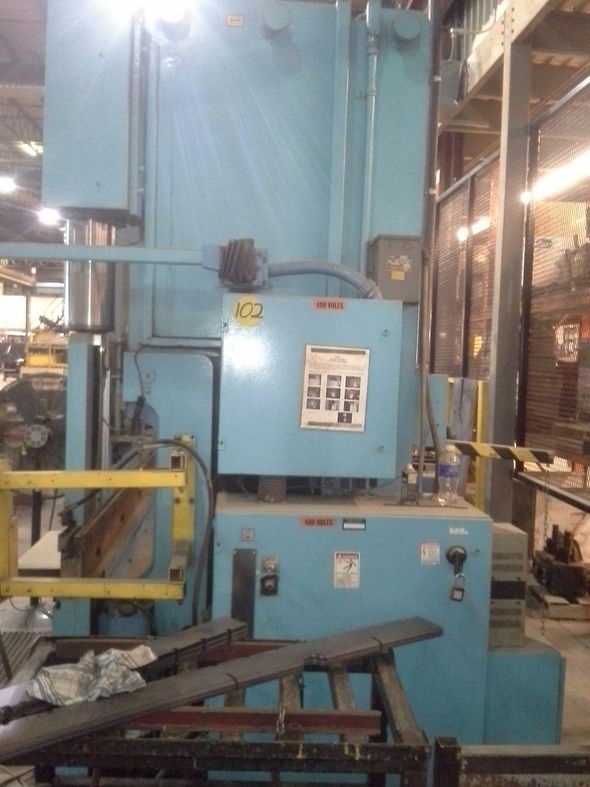

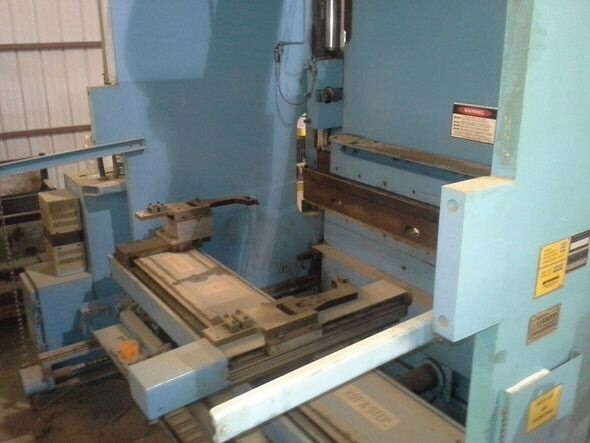

PHP 140-96

Product Features

  • ITEM ID: PHP 140-96-UJ
  • CAPACITY: 8' x 140 TON
  • SERIAL NO: HPB 53-102X
  • OVERALL BENDING LENGTH: 8’
  • DISTANCE BETWEEN HOUSINGS: 6’ 6”
  • STROKE OF RAM: 14”
  • OPEN DAYLIGHT: 23”
  • SPEED (ADVANCE): 300 IPM
  • SPEED (PRESSING): 20 IPM
  • SPEED (RETURN): 200 IMP
  • MAXIMUM TRAVEL OF BACK GAUGE: 40"
  • TABLE WIDTH: 5.5"
  • DISTANCE FLOOR TO TOP OF BED: 32"
  • THROAT DEPTH: 7"
  • YEAR: 1995
  • MOTOR: 15HP
  • WEIGHT: 18,000 LBS (approx)
  • DIMENSIONS (LxWxH): 115" x 84" x 129"
  • FOB POINT: MONCLAVA, OHIO, USA
