Available in 3 models

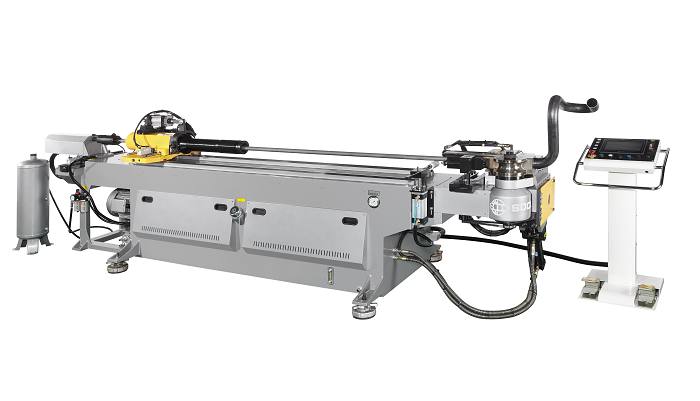

SB-39 AUTO SB-63 AUTO SB-90 AUTO

Capacity: 88.9mm Dia. x 2.3T (Mild Steel)

Key Features:

  • CNC bending machine with capacities from O.D. 10mm ~ 90mm
  • Fully automatic and cost effective
  • Equipped with 3 programmable axis
    1. Feeding – Electric Servo
    2. Rotation – Electric Servo
    3. Bending – Hydraulic (NC)
  • Standard with hydraulic pressure die assist for every bending stack
  • Equipped with Wiper, clamping and pressure die seats
  • Programmable early mandrel extraction system
  • Touch Screen system and mobile control
  • Quick tool change system
  • NC programmable hydraulic bending precision up to +/-0.2º
  • Automatic spring back compensation
  • Data input by XYZ or YBC coordinates
  • Data storage and editing for multiple files
  • Automatic mandrel lubricating system (optional)
