CAPACITIES:
| Flat Bar Hard Way | 2-5/16” x 3/8”
3/4”x3/8” |
@ 24” Dia. Min
@ 12” Dia. Min |
| Flat Bar Easy Way | 4”x 9/16”
2×3/8” |
@ 24” Dia. Min
@ 12” Dia. Min |
| Angle Iron Leg In | 2”x2”x 5/16” | @ 24” Dia. Min |
| Angle Iron Leg Out | 2”x2”x 1/4” | @ 36” Dia. Min |
| Schedule 40 Pipe | 2” | @ 40” Dia. Min |
| Tubing Round | 2-3/4” x 14 ga. | @ 48” Dia. Min. |

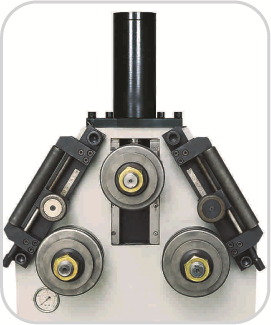

Hardened Rolls for standard profiles included with machine
Hydraulic adjustment of top roll position
CAPACITY CHART: metric
| No | Profile Type | Size
Max / Min |
Min. Dia. | Notes |
| 1 | 60 x 10
20 x 10 |
600
300 |
Standard Rolls | |
| 2 | 100 x 15
50 x 10 |
600
300 |
Standard Rolls | |
| 3 | Ø 35
Ø 15 |
600
300 |
Standard Rolls | |
| 4 | Ø 35
Ø 20 |
600
300 |
Optional Rolls | |
| 5 | Ø 70 x 2
Ø 2.5 x 1.5 |
1200
400 |
Optional Rolls | |
| 6 | Ø 2” PIPE
Ø 1/2” PIPE |
1000
300 |
Optional Rolls | |
| 7 | 70 x 30 x 3
30 x 15 x 2 |
1500
400 |
Optional Rolls | |
| 8 | 50 x 3
25 x 2 |
1600
400 |
Optional Rolls | |
| 9 | 50 x 50 x 8
30 x 30 x 3 |
600
400 |
Optional Rolls * | |
| 10 | 50 x 50 x 6
30 x 30 x 3 |
900
600 |
Optional Rolls * | |
| 11 | 60 x 7
30 x 4 |
800
500 |
Standard Rolls | |
| 12 | 50 x 6
30 x 4 |
800
500 |
Standard Rolls | |
| 13 | 60 x 7
30 x 4 |
800
500 |
Optional Rolls | |
| 14 | UPN 80
UPN 30 |
800
400 |
Standard Rolls * | |
| 15 | UPN 80
UPN 30 |
1200
600 |
Standard Rolls * |
All Bending capacities are calculated based on 24 kg/mm2 Yield Point Material (34,000 PSI Yield) All Imperial Specifications are approximate conversions.

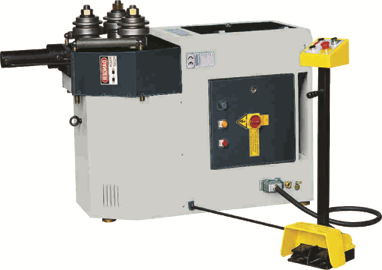

ELECTRICAL EQUIPMENT AND CONTROLS:
575volt / 3ph. /60cy., 1-1/2 HP
Weight: 1,250 lbs
Dimensions (l/w/h): 34”x38”x60”
OPTIONS:
Digital Display
Guide Rolls
Infinitely Variable Speed on Controls
NC Control- Easy View with manual, automatic, semi-automatic and teachable working modes, 48 steps with 1000 programs memory, 7.7” screen, Siemens PLC
NC control…same as above with 10”screen
Extra axis for NC control
Hand Rail Bending Device
Tube/Pipe Rolls
Profile Rolls, Angle
Specifications
- Capacity: 2” x 2” x 1/4”
- Shaft Diameter: 2.00” / 50mm
- Upper Roll Diameter: 6.00” / 152mm
- Lower Roll Diameters: 6.37” / 162mm
- Shaft speed: 14 fpm
