STANDARD FEATURES

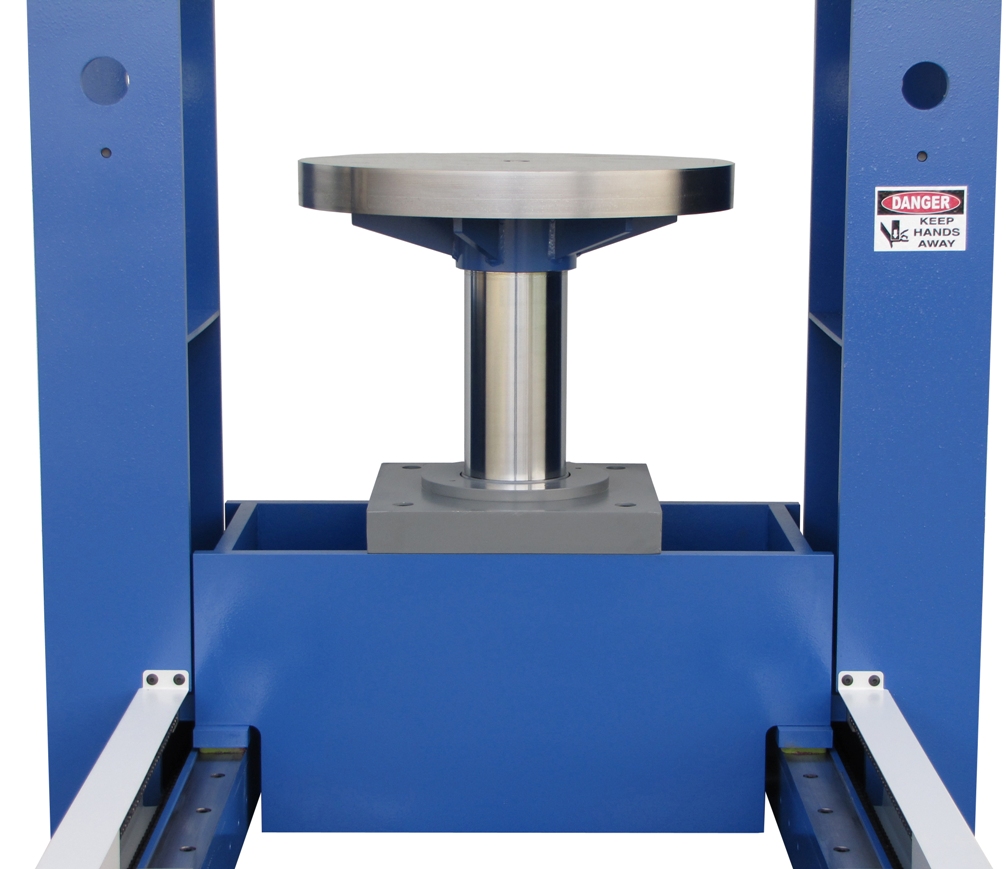

  • Powered movable table for ease of loading & positioning workpiece under cylinder
  •  Powered movable workhead for off-center work allows to position the cylinder from left to right with the touch of a lever
  • Hydraulic power-lift for vertical displacement of head assembly
  • Cylinder activation is fingertip controlled, the more the hand lever is engaged, the more the ram movement is accelerated. This allows the operator to control the proper speed for the task
  • Pressure regulator to limit the ram pressure

Key features and specs

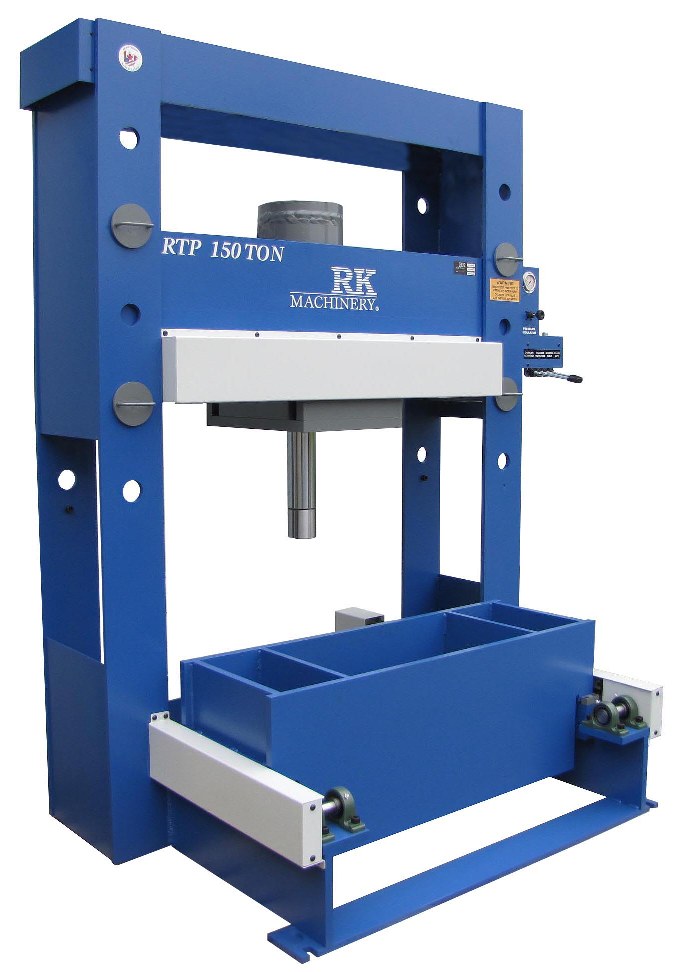

  • MODEL: RTP-150
  • POWER: 10 HP, 3 Phase
  • BORE: 10"
  • STROKE: 16"
  • RAM SPEED: - Advance: 24 IPM - Press: 6 IPM - Return: 28 IPM
  • CAPACITY: 150 Tons
  • WEIGHT: 4,400 LBS
  • SHIPPING DIMENSIONS (LxWxH): 65"x84"x105"
