Specifications:

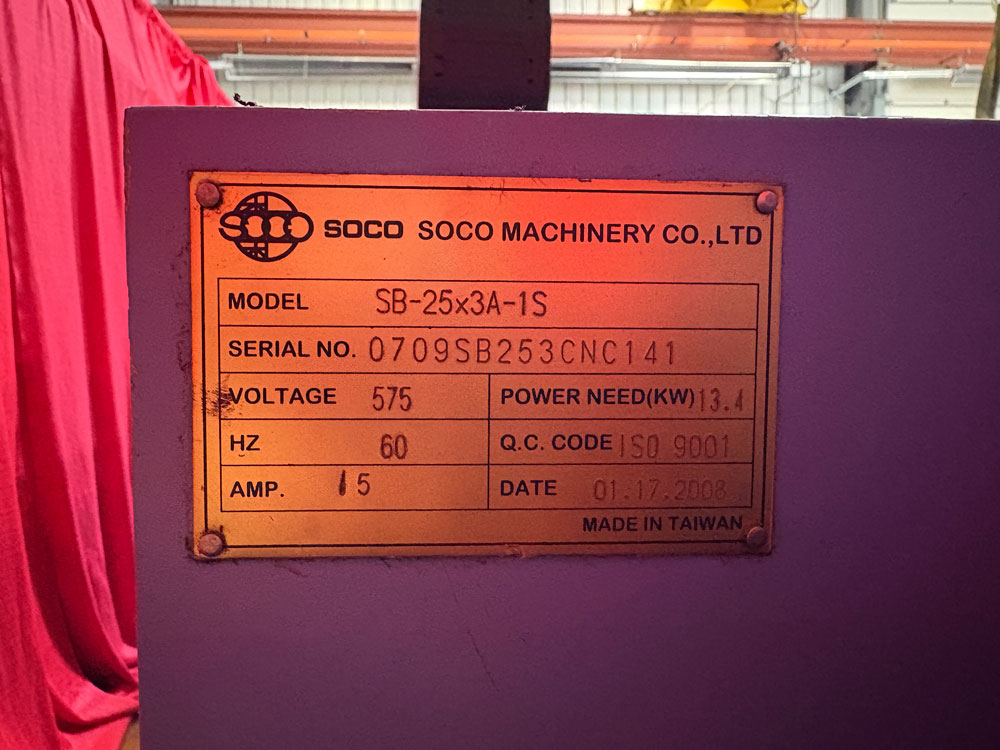

MODEL: SB-25X3A-1S
YEAR: 2008
SERIAL#: 0709SB253CNC141
CAPACITY: 1.0″ OD x 0.045″ WALL (1.5D CLR)
MAX. TUBE O.D. MILD STEEL: 0.750″ x .090″ (1.5D CLR)
MAX. TUBE O.D. STAINLESS STEEL: 0.750″ x .059″ (1.5D CLR)
MAX. TUBE LENGTH WITH MANDREL: 94″ over mandrel (70″ Feed Stroke)
MAXIMUM BENDING RADIUS: 4”
MAXIMUM BENDING ANGLE: 190 DEGREES
MAIN MOTOR: 5 HP
WEIGHT: 3,550 LBS
DIMENSIONS (LxWxH): 127″ x 42″ x 56″
FOB POINT: MISSISSAUGA, ON
CONDITION: Pre-Owned
