Specifications:
MODEL: APHS 3108×160
CAPACITY: 10′ X 176 TON
SERIAL NO.: 19805
OVERALL BENDING LENGTH: 10’
DISTANCE BETWEEN HOUSINGS: 8’ 4”
STROKE OF RAM: 10”
OPEN DAYLIGHT: 20.8”
SPEED: ADVANCE: 378 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 307 IPM

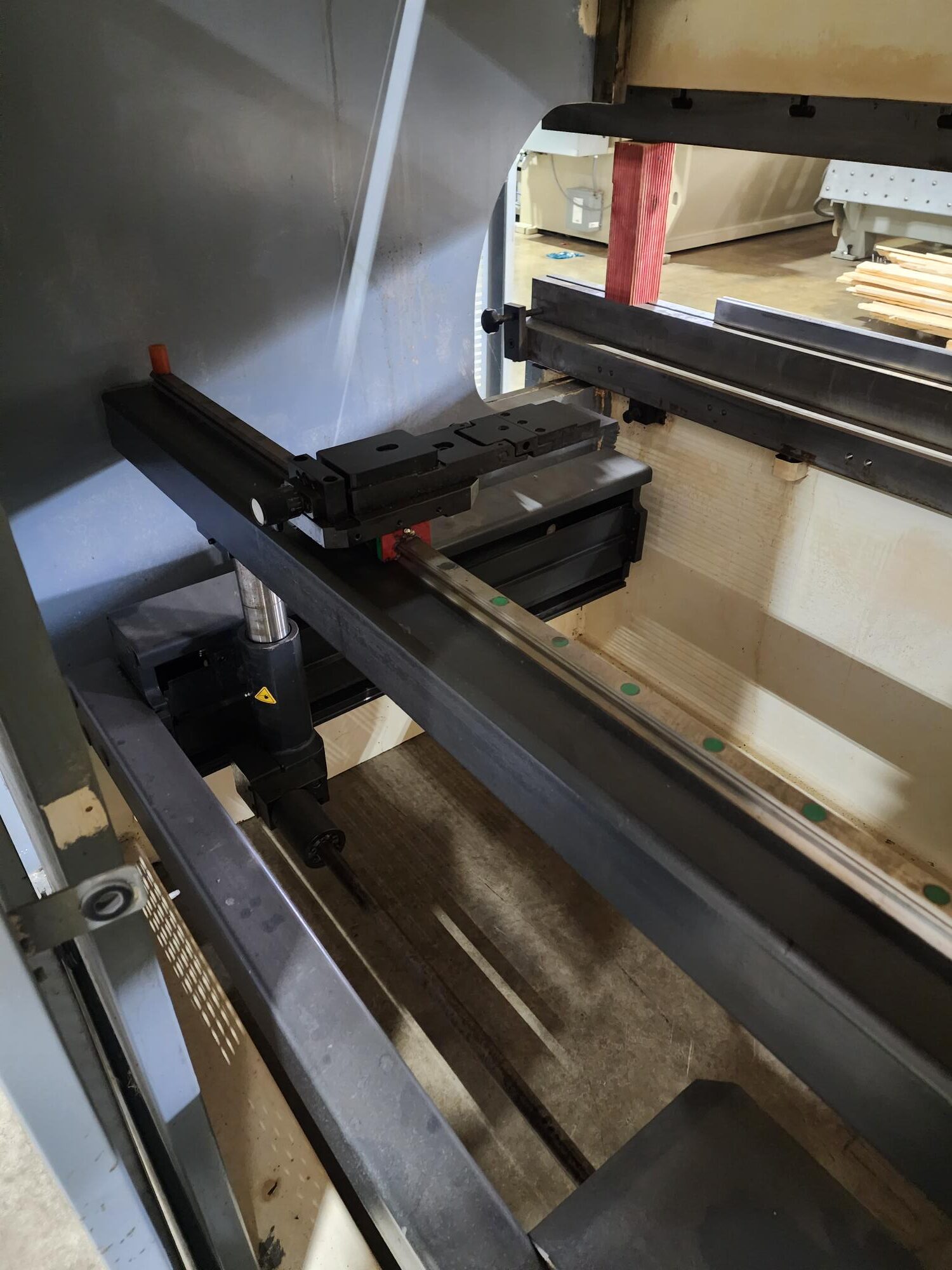

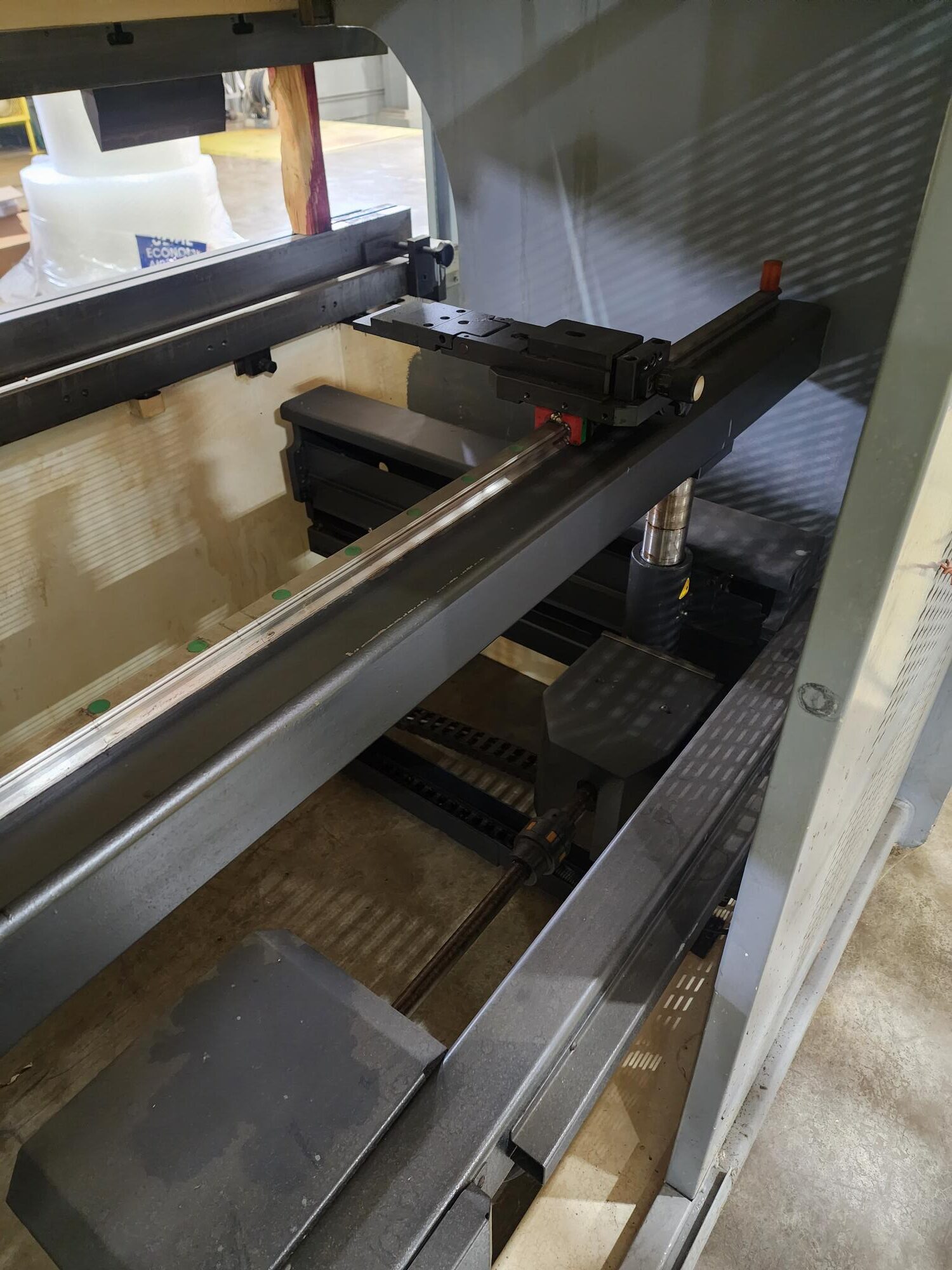

MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second finger stop)
TABLE WIDTH: 7 ¾”, complete with full length 3” W x 3 ½” H riser block
DISTANCE FLOOR TO TOP OF BED: 35”
THROAT DEPTH: 16”
YEAR: 2013
MOTOR: 20 HP
WEIGHT: 22,000 LBS (approx)
DIMENSIONS (LxWxH): 155” x 90” x 115”
