Product Details
Overview

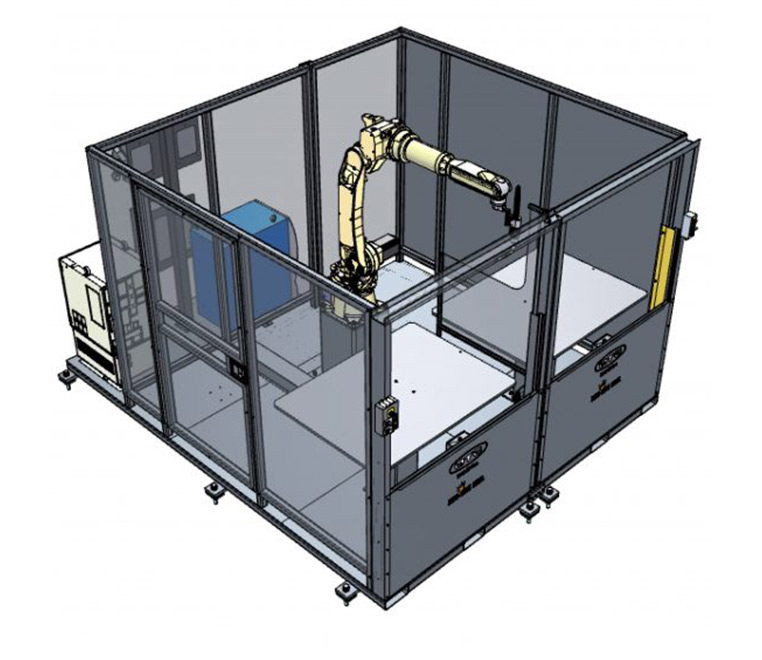

- Larger work envelope with long arm robot manipulator and two larger tabletops
- Best suited for production runs of medium to high volume, with little or no part positioning
- 2 stationary tables with long reach robot manipulator FD-V8L (S2)
- 1 arc welding robot
- Integrated Welbee II advanced welding power source with wire feeder and torch
- Advanced robot controller
- Teach pendant
- Smaller base with floor-mounted safety fencing and arc flash curtains
- Manually sliding operator load doors
- Steel tubular frame assembly
- Zone Ring for station designation
- Standard forklift pockets in base for easy movement
- Steel wall station divider
- Find options for the cell, headstock, tilt/turn and more in the Resources tab
Specifications
- Tabletop Dimensions: 1220mm x 915mm
- Weight: Approx. 3500kg
- Width: 2960mm (116.5”)
- Height: 2200mm (86.6”)
- Depth: 3440mm (135.4”)
