FLEX VERTICAL MACHINING CENTER

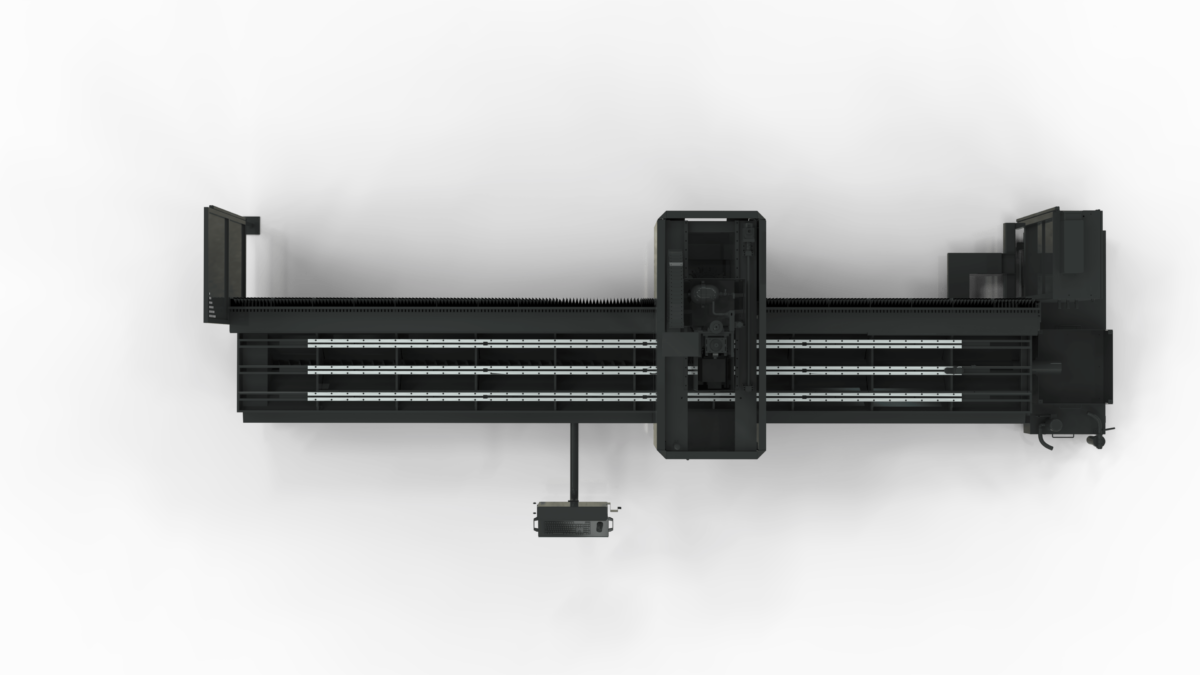

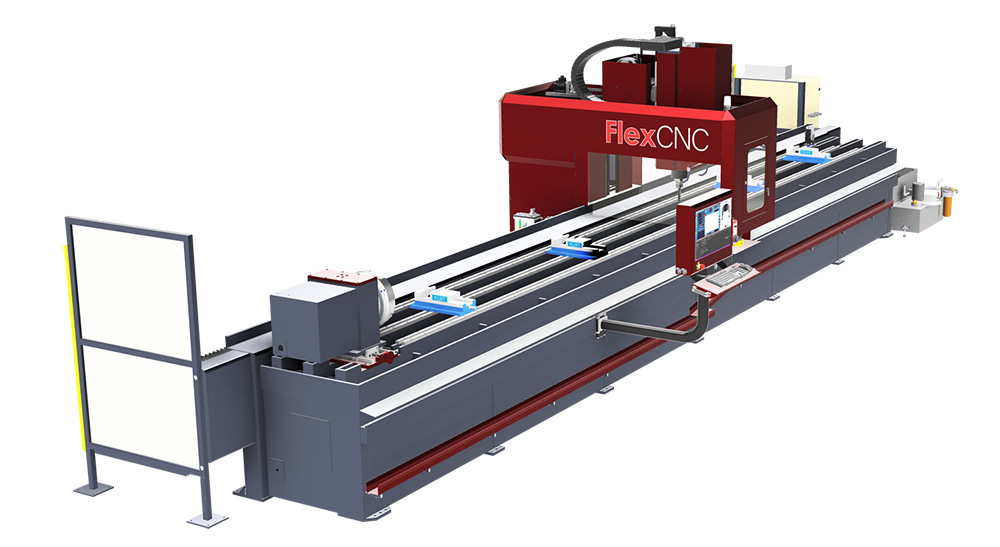

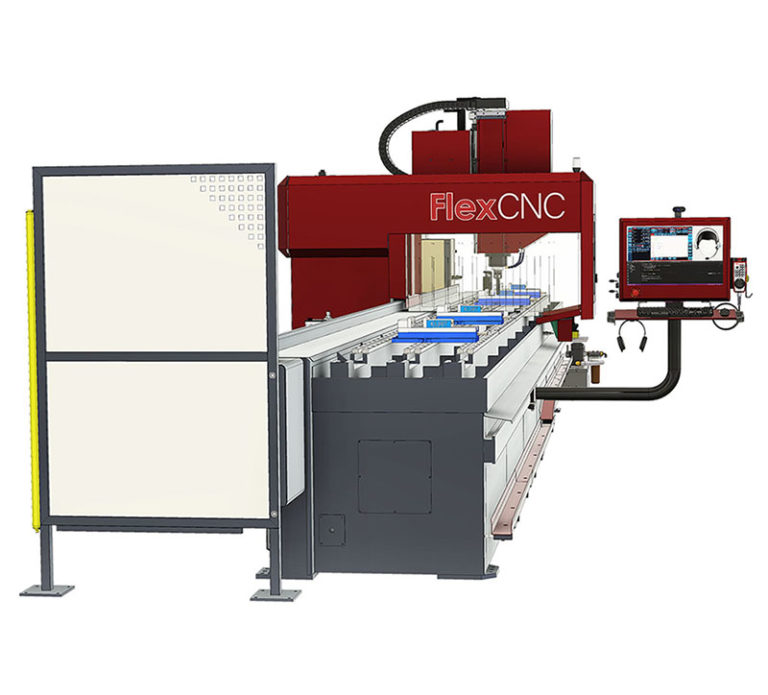

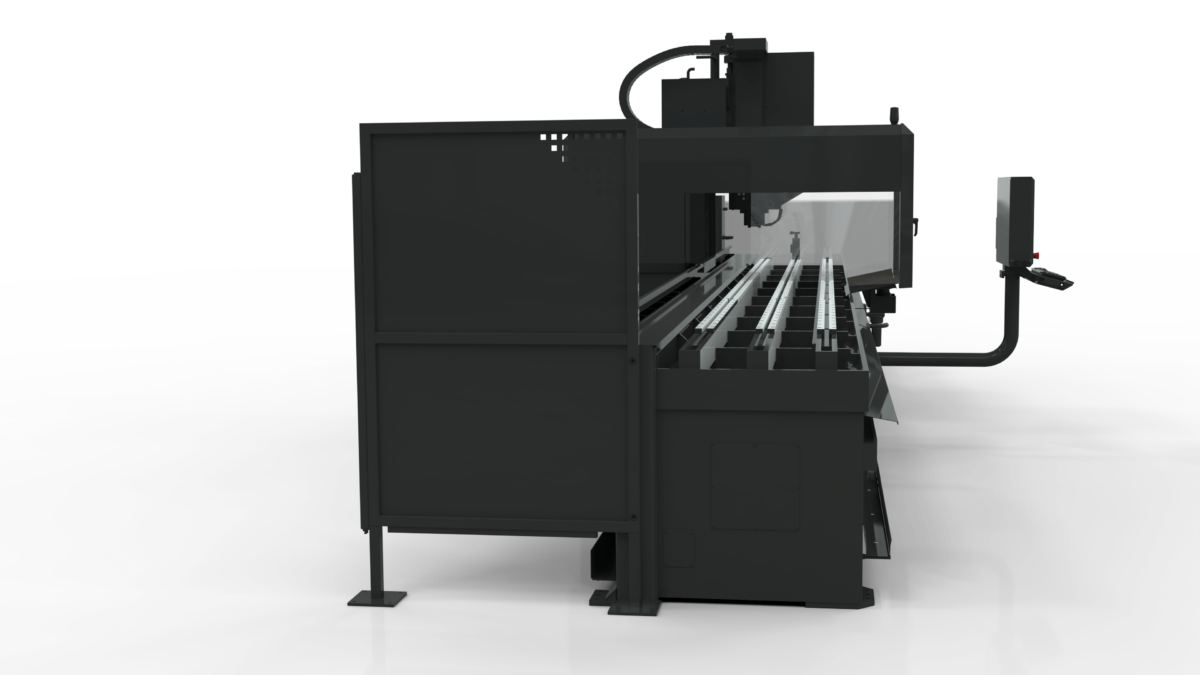

The FlexCNC is the best priced and most flexible vertical machining center in the world. The FlexCNC C-Series cantilever-style vertical machining center ranges in size from 10’ to 80’ long. In addition to our standard sizes, we design and build custom machines to suit your needs.

Capable of high-speed drilling and milling of your large parts in one setup with less repositioning. It is available in two different spindle tapers; CT/BT40, with a maximum torque output of 92 ft/lbs. The C-Series features a monobloc, welded steel frame with high rigidity, and a T-slot machine bed for easy fixturing. The machine is moved along two oversized precision linear guideways on each axis and it includes dual drive on the X-axis with a high precision helical rack and an oversized ball screw on the Y & Z-axis. Our motion control system is the most state-of-the-art CNC controller available, giving you the capability and Flexibility for your machining applications large and small.



X-Stroke:10′ – 80′
Y Stroke:26″
Z Stroke:18″
Spindle to table:6″ – 24″
Rapid X:Max 1,500 IPM
Rapid Y:Max 1,500 IPM
Rapid Z:Max 500 IPM

Key features and specs

  • Hand Pendant
  • 22″ Touch Screen Monitor
  • Omron FlexCNC Controller
  • Mobile Control Panel
  • Through Spindle Coolant
  • Auto Tool Changer
  • Flood Coolant
  • Tool Calibrator
  • LED Machine Light
  • Ethernet Connection
  • Safety Laser Scanner on Front of Machine
  • Light Barrier on the Rear of Machine
  • 90 Gallon Coolant Tank
  • Chip Auger & T-Slot Rails

Options

  • Convenience
    • Z-Reader Probe
  • Lubrication
    • Through Spindle Air Blast
    • External Air Blast
    • External Micro Spray
    • External Oil Spray
    • External Paste Spray
    • Through Spindle Micro Spray
  • 4th Axis
    • 4th Axis with 10″ Platter, Adjustable Table and 3 Jaw Chuck (3D)
    • 4th Axis with 16″ Platter, Adjustable Table and 3 Jaw Chuck (3D)
    • Adjustable Manual Tailstock for 10″ Platter
  • Fixturing
    • Pneumatic Vise – Universal
    • Pneumatic Vise – For Rounds 10″
    • Pneumatic Vise – For Rounds 16″
    • Pneumatic Vise – Multi
  • Misc
    • A/C for Electrical Cabinet
    • Chip Conveyor
