FEATURES
- Fast and accurate cutting cycles are achieved by the short upward saw stroke
- Wide angle cutting range. Up to 45º to the left and up to 0º to the right
- Special pivoting mechanism with integrated round table enables working from the front at any angle position
- Back fence is adjustable to allow the most effective use of the saw blade capacity for wide + flat profiles
- Manual upward saw stroke
- Pneumatic material clamping (vertical)
- Pulsed coolant system
- Air filter, regulator
- Equipped with saw blade + machine base
- Pneumatic Sawing feed
- Safety Hood
Key features and specs

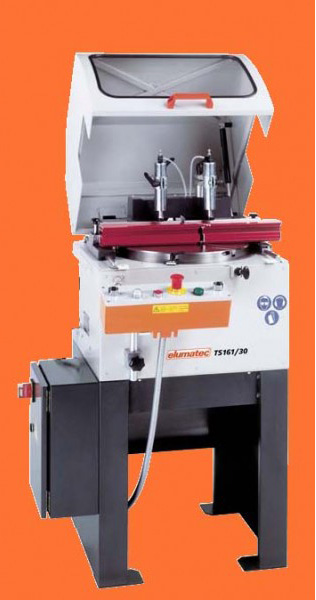

- MODEL: TS 161/30
- SAW BLADE DIAMETER: 280 mm
- SPINDLE SPEED: 3200 RPM
- POWER SUPPLY: 230/400/3/50
- POWER OUTPUT: 0.74 kW
- DIMENSIONS (LxWxH): 25.6" x 29.5" x 52"
- WEIGHT: 215 LBS
