Key features and specs

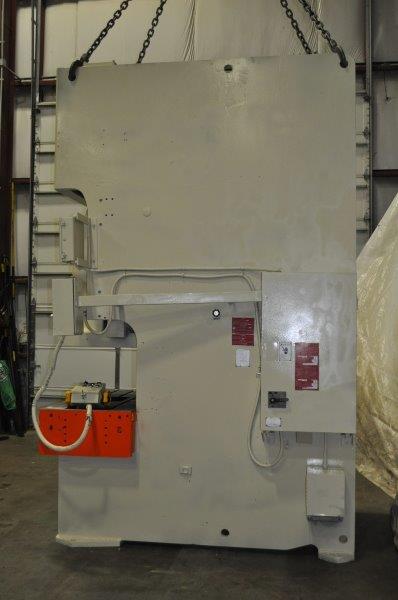

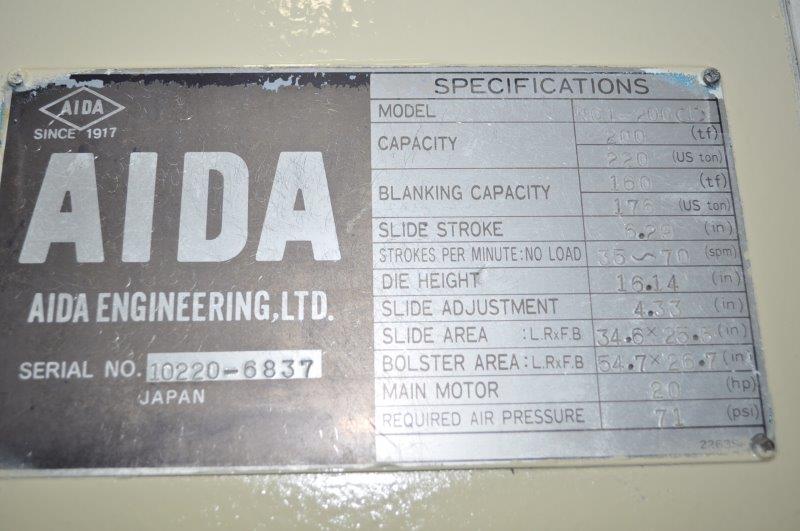

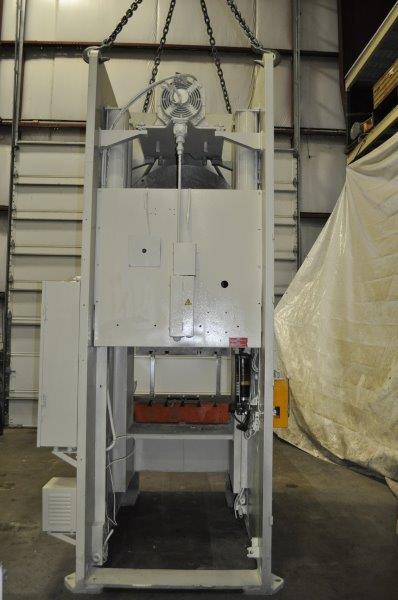

  • MODEL: NC1-200(1)
  • ITEM ID: NC1-200-UJ
  • SERIAL #: 10220-6837
  • CAPACITY: 220 TON
  • BLANKING CAPACITY: 176 TON
  • SLIDE STROKE: 6.29"
  • STROKES PER MINUTE: 35-70
  • DIE HEIGHT: 16.14" (to top of bolster)
  • SLIDE ADJUSTMENT: 4.33" (motorized)
  • SLIDE AREA: 34.6" L-R, 25.5" F-B

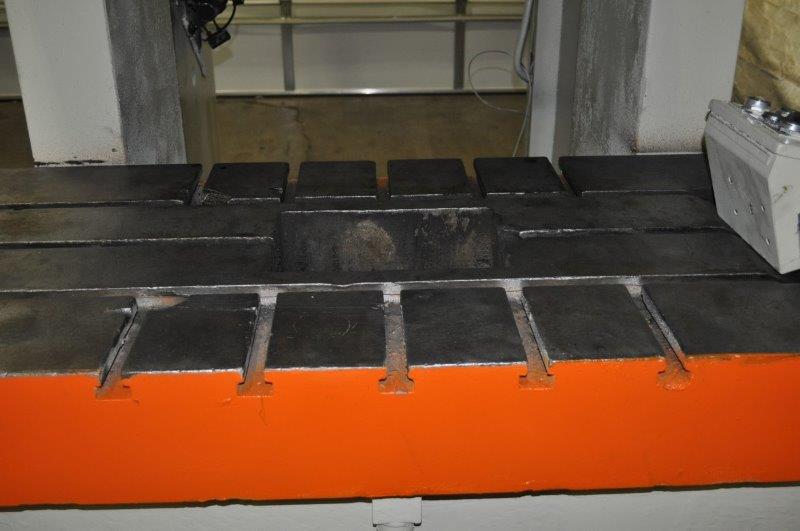

  • BOLSTER AREA: 54.7" L-R, 26.7" F-B
  • MOTOR: 20 HP
  • WEIGHT: 45,000 LBS
  • DIMENSIONS (LxWxH): 102" x 67" x 144"
  • FOB POINT: OHIO, USA
