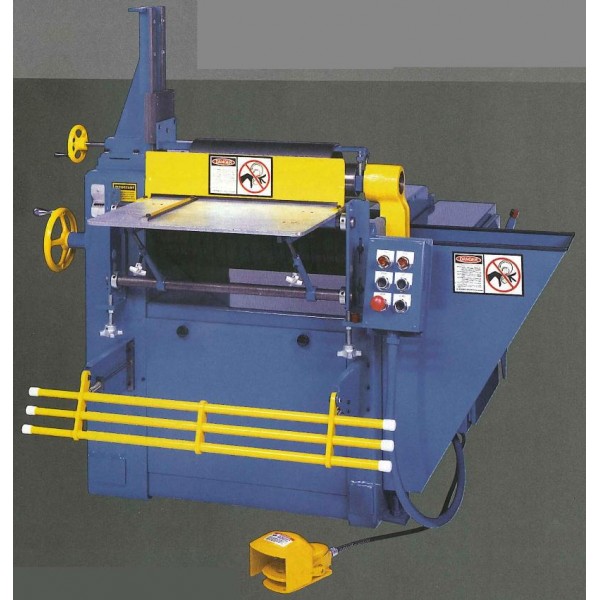

The drop arm and the lower roll are positioned pneumatically on all LD machines.

Standard features adding to the productivity and safety of these machines include:

  • A digital readout that indicates roll position and allows for quick reapeat set up
  • A safety kneebar which can be easily activated to quickly shut down all mechanical operations

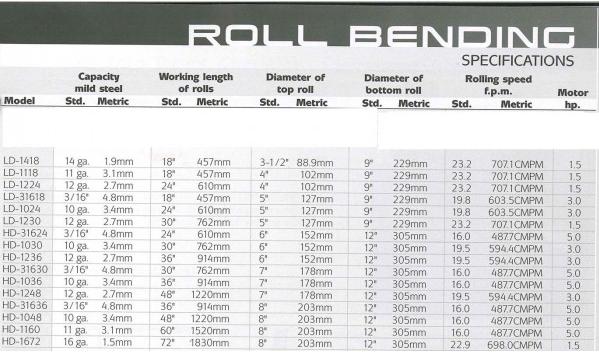

Key features and specs

  • MODEL: LD-1418
  • CAPACITY - Mild Steel: 14 ga.
  • WORKING LENGTH OF ROLLS: 18"
  • DIAMETER OF TOP ROLL: 3 1/2"
  • DIAMETER OF BOTTOM ROLL: 9"
  • ROLLING SPEED: 23.2  f.p.m
  • MOTOR: 1.5 HP
