PeddiBot-1250ST

• Thermal Cutting/Coping Line, Robotic Plasma Cutting, Roller Feed Measurement, Camera System, Integrated Layout Marking, Profile Length Detection, Bevel Cutting, Fanuc Robot Arm, Grind Reduction Technology, Hypertherm XPR 300, Modular Control
• Plasma Cut: 300 Amps
• Pierce Up To: 1-7/8″ Thick Material

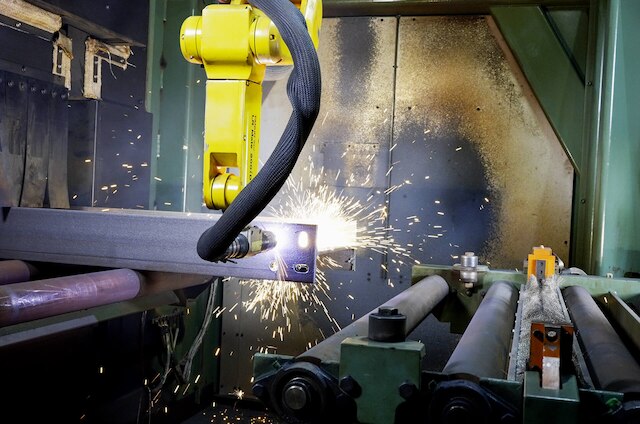

The PeddiBot-1250ST robotic CNC beam coper comes equipped with a Hypertherm XPR 300 (300 amp) plasma cutting system. The XPR 300 is designed to combine faster cutting speeds, rapid process cycling, quick changeovers and high reliability to maximize productivity.

The PeddiBot-1250ST is equipped with a camera system consisting of five main cameras that measure material in the processing zone to generate precise cut paths for the torch. An additional camera is dedicated to trail end processing, capturing measurements as the material moves into the machine. This system is significantly faster than laser or touch probing machines.

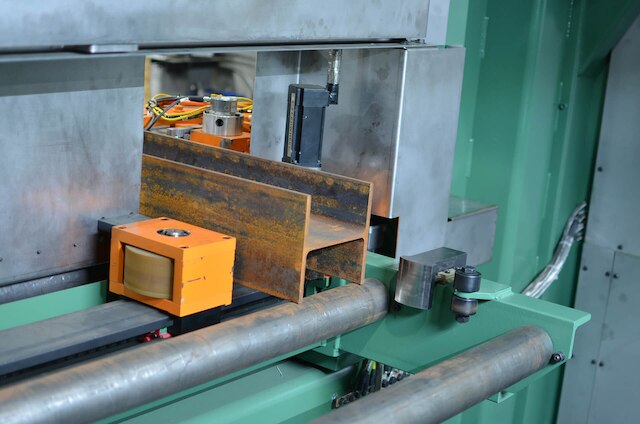

Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

The PeddiBot-1250ST uses all-electric conveyors while a polymer drive roller works seamlessly with the conveyors for smooth material handling. With a fully electric design, it eliminates the need for hydraulics, using a precise electric actuator for horizontal clamping.

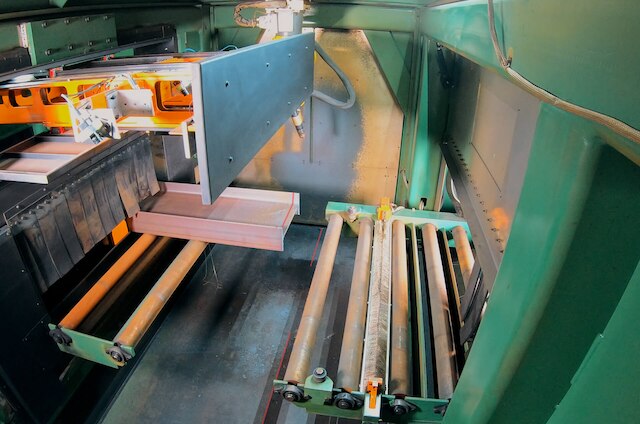

Material exiting the PeddiBot-1250 is loaded onto an advanced telescoping material support conveyor. This enhanced conveyor system is designed to bridge the space between support rollers when processing small or thin material. The conveyor is retracted once the robot is in operation.

The compact design features a smaller arm than other robotic thermal cutting machines, making it more nimble and enabling faster processing. Its smaller footprint allows it to fit into more shop environments, maximizing versatility and efficiency.
