Product Details
Overview

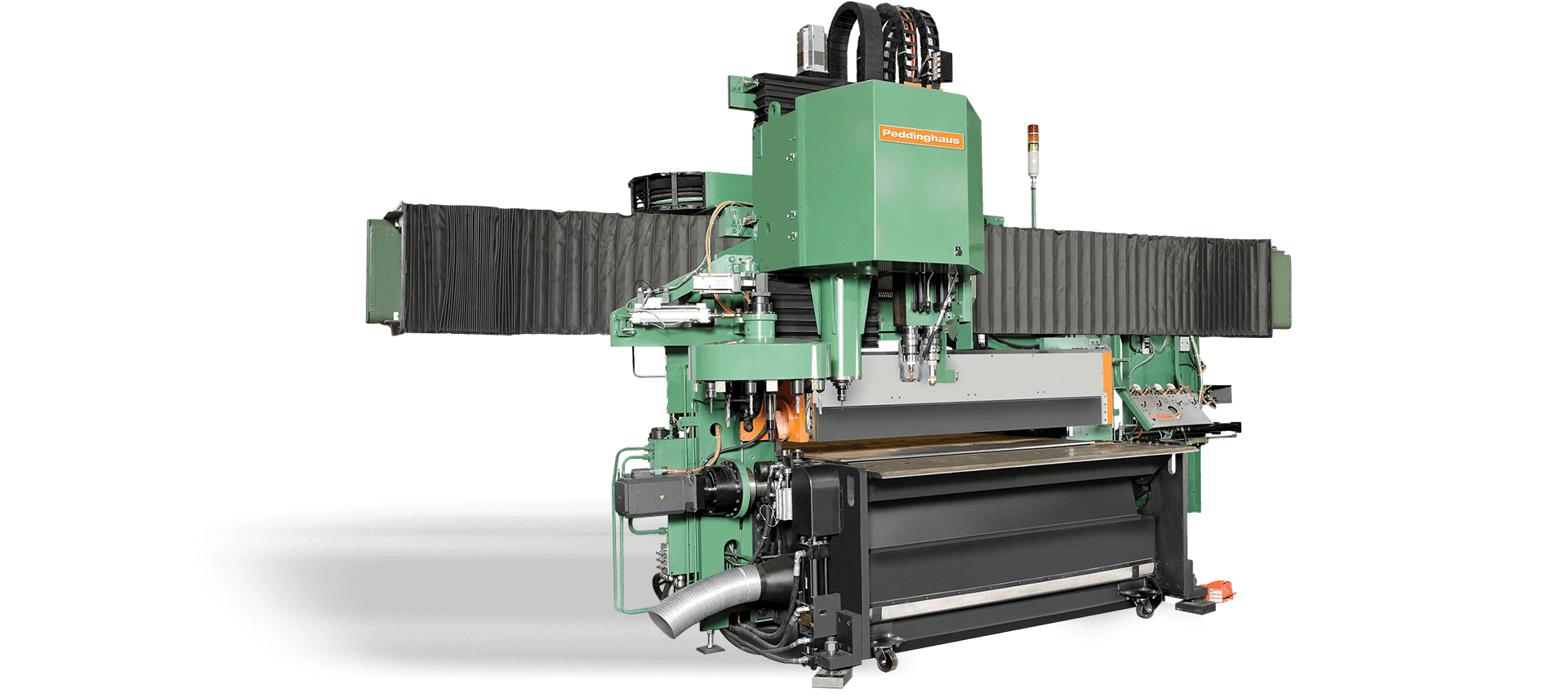

- Structural Steel Plate Processor, High Speed Carbide Drilling, Plasma Cutting, Oxy-Fuel Cutting, Milling, 8-Station Tool Changer, Siemens Spindle Motors, SignoScript Carbide Scribing, Minimum Quantity Lubrication, Superior Clamping System, Material Dimensioning, Side Unloading System, Nesting Software, Peddinghaus Control
- Process: 3″ Thick Plate
- Tool Changer: 8 station

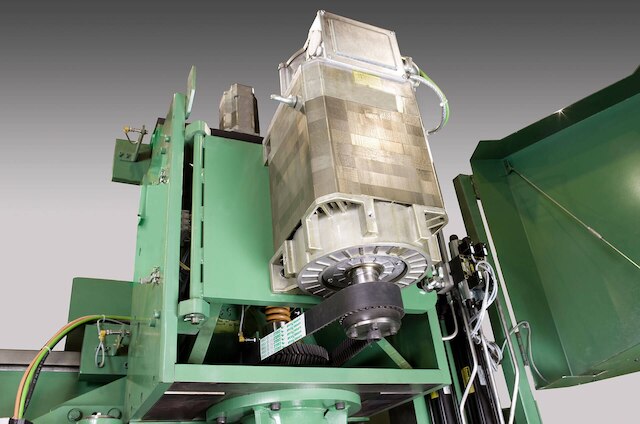

Siemens Spindle Motors
Powered by 48 HP Siemens intelligent spindle motors, the HSFDB-B is outfitted with spindle speeds of up to 2250 RPM. This heightened technology allows for unmatched processing strength and output.
Plasma/Oxy-Fuel Cutting up to 3” Thick Plate
Whether it’s the speed of plasma, or the economy of oxy-fuel, thermal cutting is available in all forms on the HSFDB-B CNC plate processor.

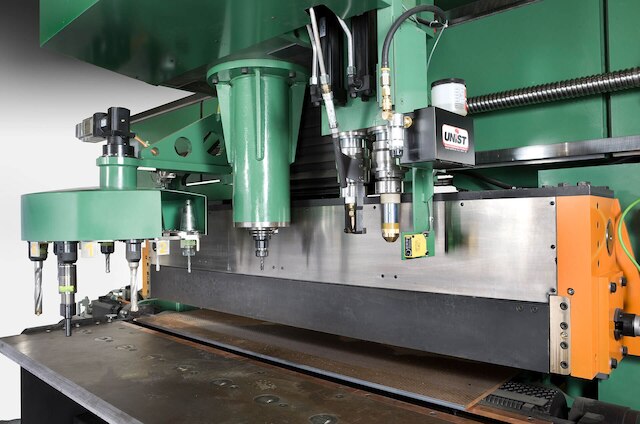

8-Station Tool Changer Enhanced by MQL
The HSFDB-B comes stocked with an 8-station tool holder assisted with the Minimum Quantity Lubrication (MQL) system to prolong tool life.

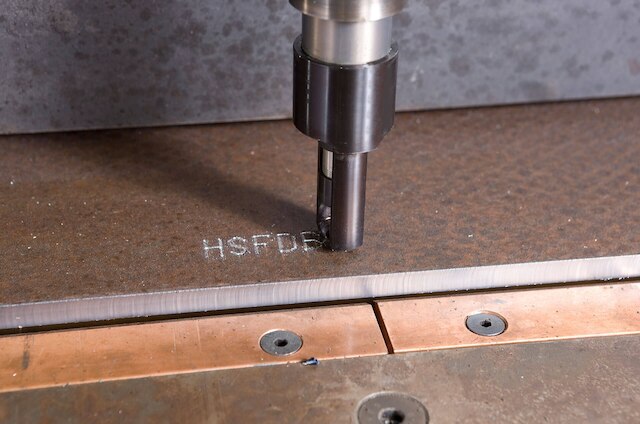

SignoScript Carbide Scribing
The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.
The Side Unloading System
The Side Unloader parts conveyor is designed to allow finished parts to drop directly onto a hardened steel conveyor, delivering them to an ergonomic unloading height at the operator station. The Side Unloader conveyor option transfers parts while the machine is in continuous operation.
12-Station Tool Changer Enhanced by MQL
The HSFDB-C comes stocked with a 12-station tool holder, and a new stamping unit stamps with a magazine of 36 characters at a rate of 1 character per second. Overall plate production is further assisted with the Minimum Quantity Lubrication (MQL) system prolonging tool life, the laser edge detection system and the infrared tool measurement system.
The Side Unloading System
The Side Unloader parts conveyor is designed to allow finished parts to drop directly onto a hardened steel conveyor, delivering them to an ergonomic unloading height at the operator station. The Side Unloader conveyor option transfers parts while the machine is in continuous operation.

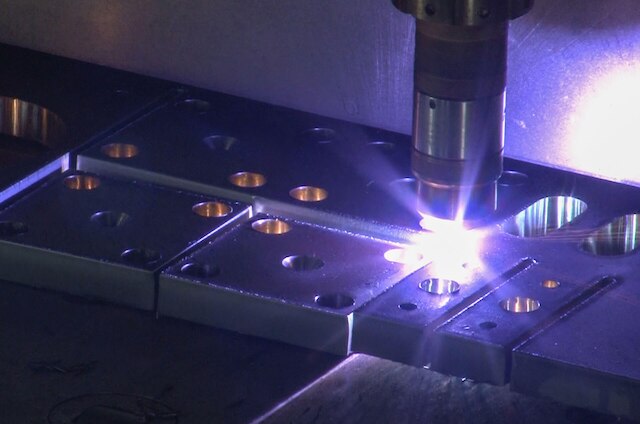

Cutting Efficiency
The HSFDB-B CNC plate processor has the capability to perform both edge start cutting and common line cutting techniques. Minimize scrap and consumable wear by getting the most out of your stock plate.

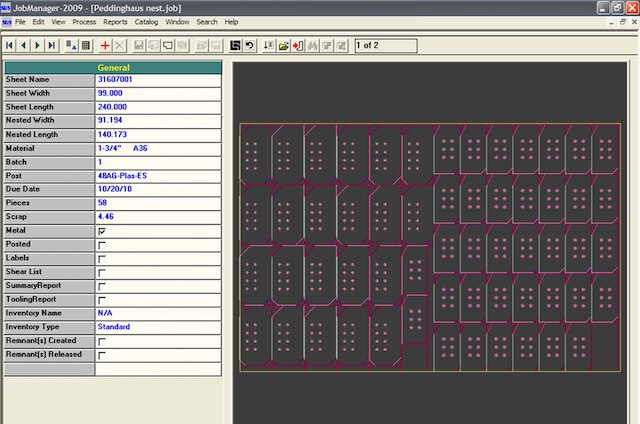

SDS Plate Nesting Software
Peddinghaus plate machines proudly operate with today’s modern nesting software solution, SDS. SDS software allows fabricators to automatically batch nest existing files, edit on the fly or create parts at the control console. Peddinghaus machines are able to take full advantage of common cutline, chain cutting and edge start cutting techniques.
