Key features and specs

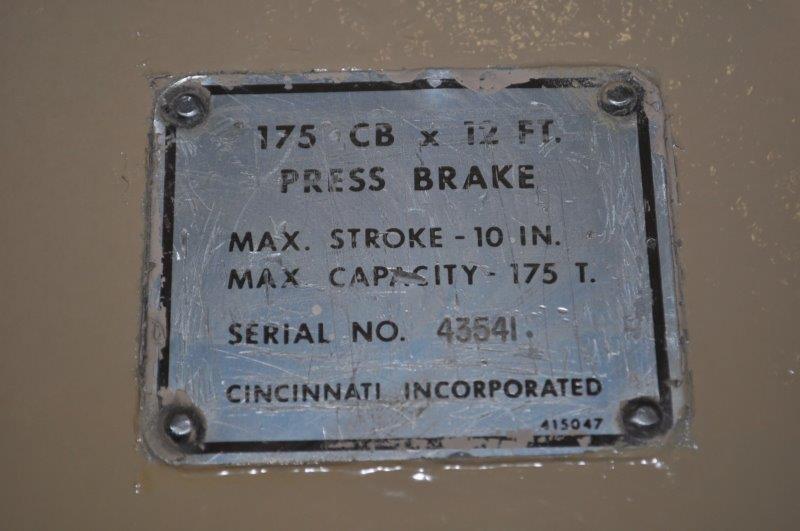

  • MODEL: 175CBX12
  • CAPACITY: 175 Ton
  • SERIAL#: 43541
  • OVERALL BENDING LENGTH: 14’
  • DISTANCE BETWEEN HOUSINGS: 12’6”
  • STROKE LENGTH: 10”
  • GAP DEPTH: 8.5” from Centre of Die
  • BED WIDTH: 4.5”
  • SPEED-APPROACH: 132 I.P.M.
  • SPEED-WORKING: 18 I.P.M.
  • SPEED-RETURN: 127 I.P.M.
  • DAYLIGHT: 17”
  • YEAR: 1983, approx.
  • MOTOR: 20 HP
  • WEIGHT: 25,000 lbs.
  • DIMENSIONS (LxWxH): 180” x 87” x 137”
