Product Details
Overview
- Structural Steel Drill Line, High Speed Drilling, SignoScript Scribing, SignoMat Part Stamping, Three Drill Assemblies, 13.5 HP Spindle Motors, Minimum Quantity Lubrication, Superior Clamping System, Peddinghaus Control, Raptor Software
- Capacity: 44″ Maximum Profile Width
- Process: 75 Tons per week

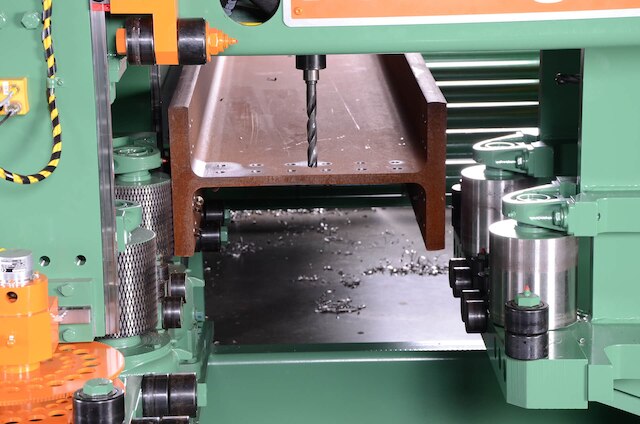

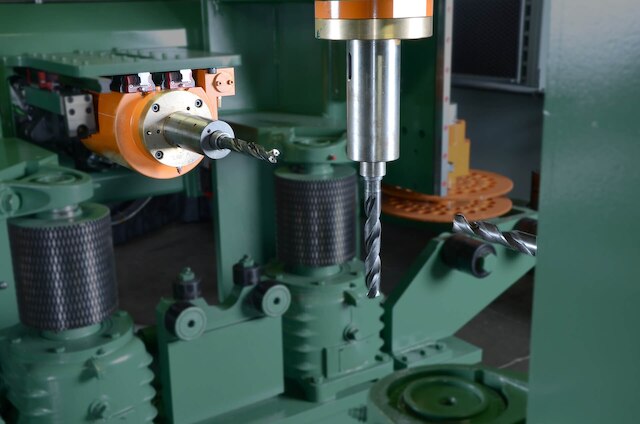

High Speed Drilling
Powered by 13.5 HP (10 kW) spindle motors, this CNC beam drilling machine is outfitted with 3 drill spindles. This powerful drilling technology allows for maximized operating time and drill hole quality.
SignoScript Scribing
The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.
SignoMat Part Stamping
An optional part stamping system maximizes part numbering efficiency. SignoMat technology stamps up to 36 characters or numbers at a rate of one character per second.
Nonstop Throughput with Roller Feed Measurement
Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.
Sturdy Drill Clamping to Eliminate Vibration
The Advantage employs a series of support clamps in order to achieve optimum rigidity of the workpiece through the machine. Tool life is best sustained with the least amount of vibration possible.
Break-Through Detection Technology for Faster Drilling
Peddinghaus engineers pioneered a system that instantaneously senses material break-through notifying the machine of the moment a hole is completed and immediately advancing to the next hole in a pattern. Break-through detection technology is designed to increase the amount of time that your drill is actually drilling material.
Band Saw Integration
The Advantage drill line with its powerful material handling support, meticulous measurement capabilities and high speed designs are ideal for tandem installations with any of Peddinghaus’ automatic sawing systems.

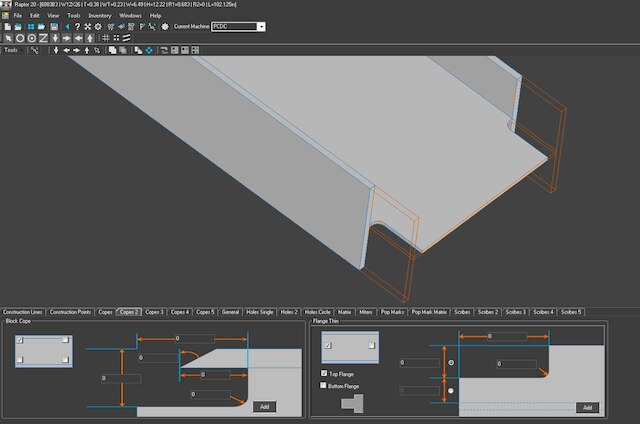

Raptor 3D CAD/CAM Software
Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
